Φαρμακευτική Co. μηχανημάτων της Σαγκάη Tianhe, ΕΠΕ.
Φαρμακευτική Co. μηχανημάτων της Σαγκάη Tianhe, ΕΠΕ.
|
Λεπτομέρειες:
|
| Σταθμός διατρήσεων: | 5 | Tooling standard: | ZP Tooling |
|---|---|---|---|
| Ανώτατη κύρια πίεση: | 60KN | Max diameter: | 18mm |
| Ανώτατο πάχος της ταμπλέτας: | 6 χιλιοστά | Max Filling Depth (mm): | 15mm |
| Max Turret Rotation Speed: | 30rpm/min | Βάρος μηχανής: | 260KGS |
| Application: | Rotary Tablet Press used in the pharmaceutical industry |

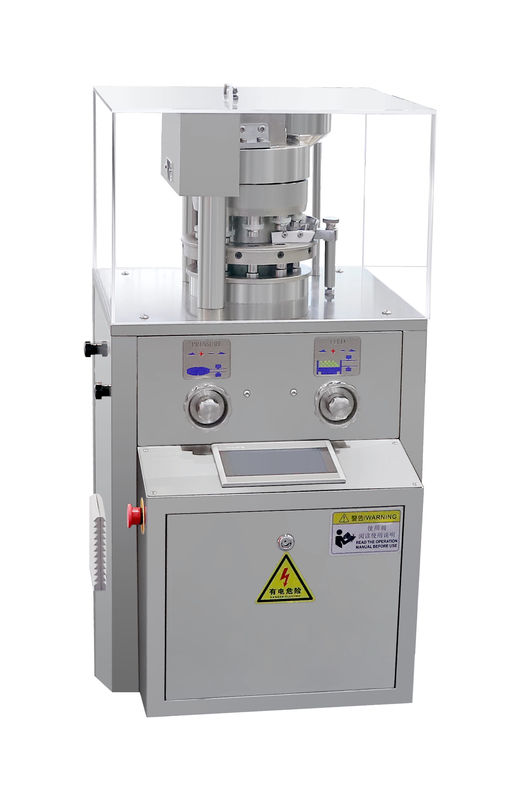

ZP5 Rotary Tablet Presss Machine Gravity Feeder GMP standard
ZP5 Rotary Tablet Presss Machine Gravity Feeder GMP standard Quick Detail
- GMP standard
- Good quality and rotation speed
- Continuous automatic tablet press
Main Application:
The ZP130 Series Rotary Tablet Press is a new generation product developed by our factory. This machine is a single roller, continuous automatic tablet press designed for producing various shapes and plain tablets. It is primarily used in the pharmaceutical industry but is also applicable in the chemical, food, and electronics industries.
Characteristics:
1. Design of GMP.
2. High quality all stainless steel constructions.
3. Reliable safety sealing system and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easily removable parts for quick maintenance.
Main Technical Specifications:
| Model | ZP-5A/5B | ||
| Punch Type | ZP | ||
| Numbers of Punch Stations | 5 | ||
| Max Pressure (kN) | 60 | ||
| Max Tablet Diameter (Round shape, mm) | 13/18 | ||
| Max Filling Depth (mm) | 15 | ||
| Max Thickness of Tablet (mm) | 6 | ||
| Max Turret Rotation Speed(r/min) | 30 | ||
| Max Production Capacity (tablets/hour) | 9,000 | ||
| Electrical Supply Parameters | 2.2kw, 220V,1P/380V,3P | ||
| Dimensions (mm) | 480*630*1020 | ||
| Weight (kg) | 260 | ||
